Productdetails:
Betalen & Verzenden Algemene voorwaarden:
|
| Type: | Seamless/Welded | Application: | oil,gas,chemical |
|---|---|---|---|
| Processing Service: | Bending, Welding, Punching, Cutting | Section Shape: | Round |
| Technique: | Weld / Seamless | Process method: | Polished, cold drawn, annealed with nitrogen protection |
| Steel Grade: | 300 Series/200 Series/400 Series, 301L, S30815, 301, 304N, 310 | Tolerance: | ±1% |

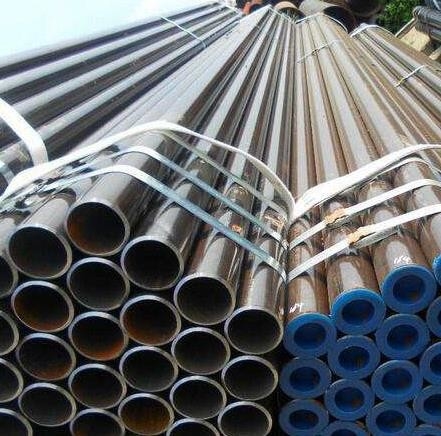

| Product name: | Carbon Steel Seamless Heat Exchanger Rifled Boiler Tube | Outer Diameter: | 10 - 610 mm |
| Markeren: | de naadloze buis van het hoge drukkoolstofstaal,koolstofstaal naadloze buis sa210 a1,astm de naadloze buis van Cs van a213 t12 |
||
Chemische en mechanische parameters
| Graad | C | Deeltjes | - Jawel. | Cr | Mo. | S | P |
| 20 g | 0.17 ~ 0.23 | 0.35 tot 0.65 | 0.17 ~ 0.37 | --- | --- | ≤ 0.020 | ≤ 0.025 |
| 20MnG | 0.17 ~ 0.23 | 0.70 ~ 1.00 | 0.17 ~ 0.37 | --- | --- | ≤ 0.020 | ≤ 0.025 |
| 25 miljoen euro | 0.22 ~ 0.29 | 0.70 ~ 1.00 | 0.17 ~ 0.37 | --- | --- | ≤ 0.020 | ≤ 0.025 |
| 12CrMoG | 0.08 tot 0.15 | 0.40 tot 0.70 | 0.17 ~ 0.37 | 0.40 tot 0.70 | 0.40 tot 0.55 | ≤ 0.020 | ≤ 0.025 |
| 15CrMoG | 0.12 tot 0.18 | 0.40 tot 0.70 | 0.17 ~ 0.37 | 0.80 tot 1.10 | 0.40 tot 0.55 | ≤ 0.020 | ≤ 0.025 |
| SA-210A1 | ≤ 0.27 | ≤ 0.93 | ≥ 0.10 | --- | --- | ≤ 0.035 | ≤ 0.035 |
| SA-210C | ≤ 0.35 | 0.29 ~ 1.06 | ≥ 0.10 | --- | --- | ≤ 0.035 | ≤ 0.035 |
| SA-213T2 | 0.10 ~ 0.20 | 0.30 tot 0.61 | 0.10 ~ 0.30 | 0.50 tot 0.81 | 0.44 tot 0.65 | ≤ 0.025 | ≤ 0.025 |
| SA-213T12 | 0.05 tot 0.15 | 0.30 tot 0.61 | ≤ 0.50 | 0.80 tot 1.25 | 0.44 tot 0.65 | ≤ 0.025 | ≤ 0.025 |
| Graad | T ((MPa) | Y(MPa) | E(%) | Hardheid |
| 20 g | 410 tot 550 | 245 | ≥ 24 | --- |
| 20MnG | ≥ 415 | ≥ 240 | ≥ 22 | --- |
| 25 miljoen euro | ≥ 485 | ≥ 275 | ≥ 20 | --- |
| 12CrMoG | 410 tot en met 560 | ≥205 | ≥ 21 | --- |
| 15CrMoG | 440 tot en met 640 | ≥235 | ≥ 21 | --- |
| SA-210C | ≥ 415 | ≥ 255 | ≥ 30 | ≤143HBW |
| SA-210A1 | ≥ 485 | ≥ 275 | ≥ 30 | ≤ 179HBW |
| SA-213T2 | ≥ 415 | ≥205 | ≥ 30 | ≤163HBW |
| SA-213T12 | ≥ 415 | ≥ 220 | ≥ 30 | ≤163HBW |
